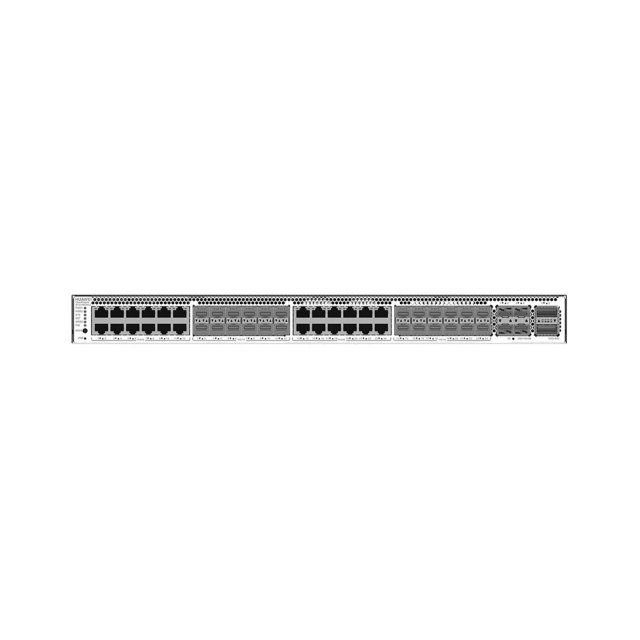

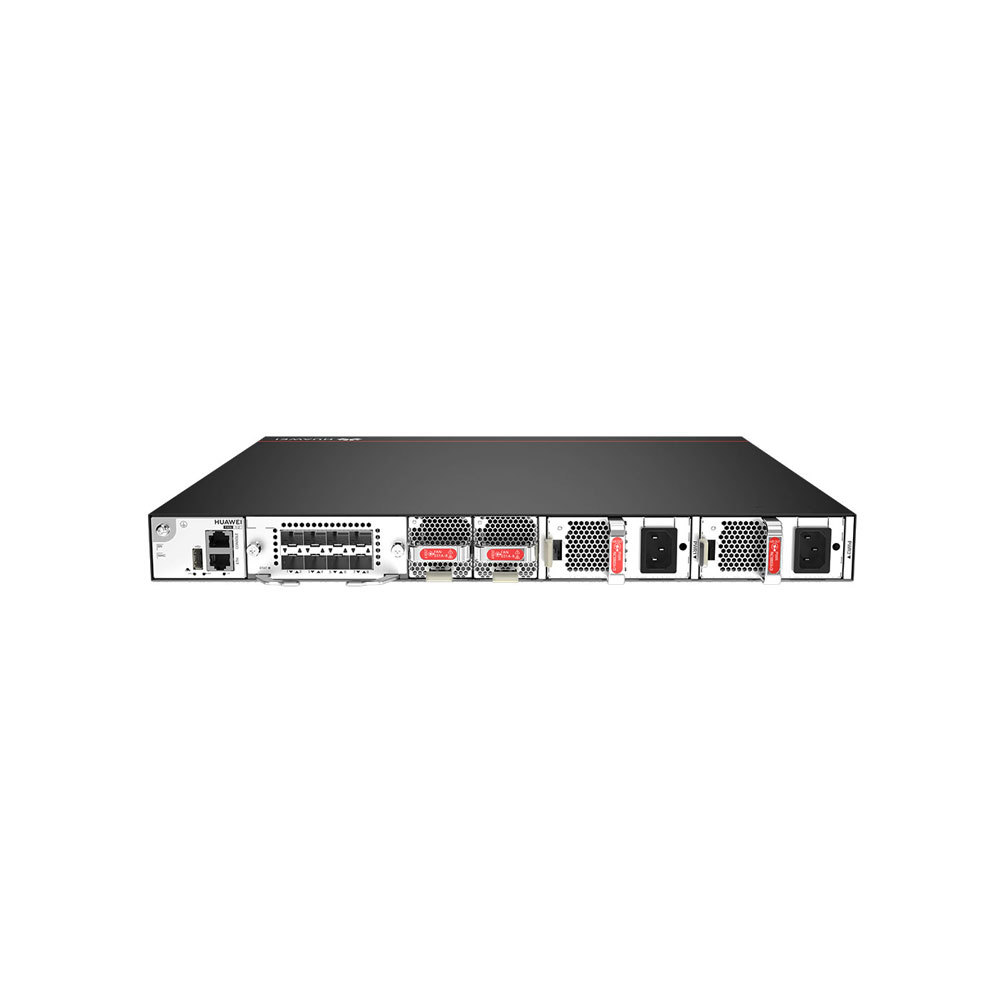

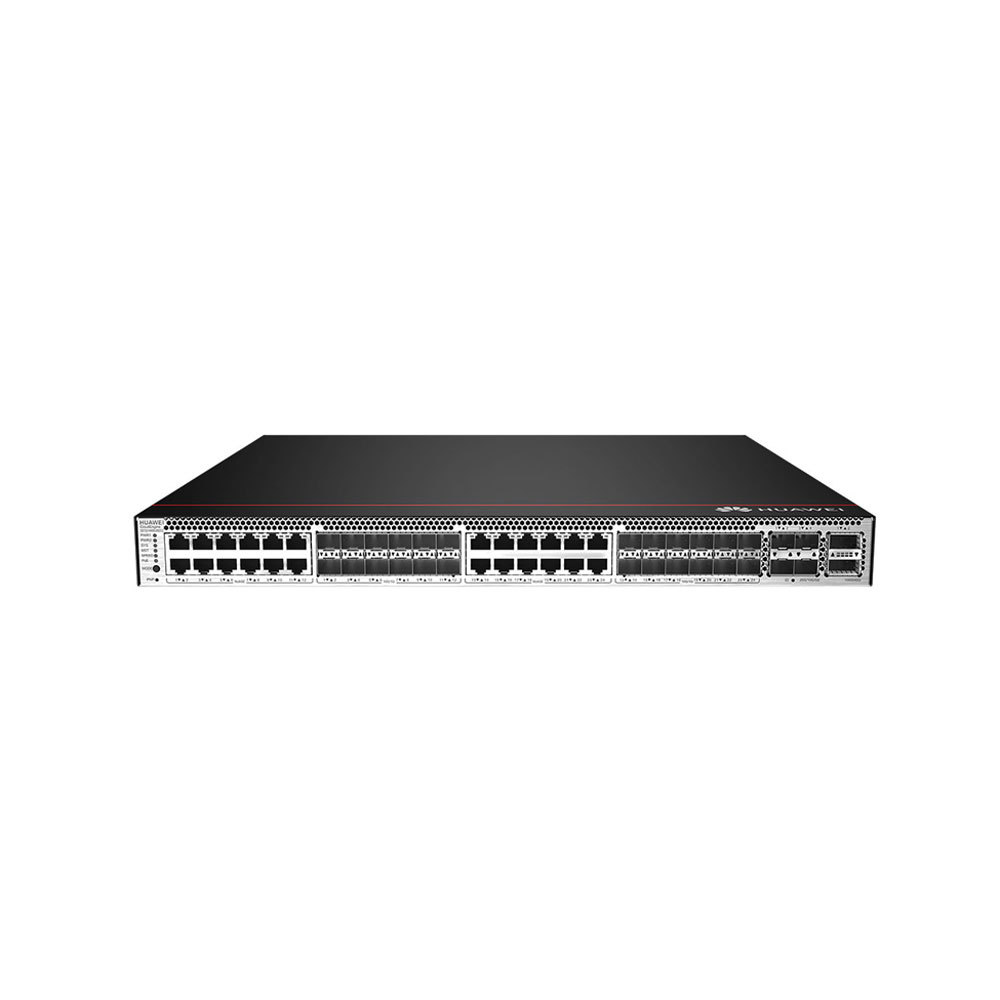

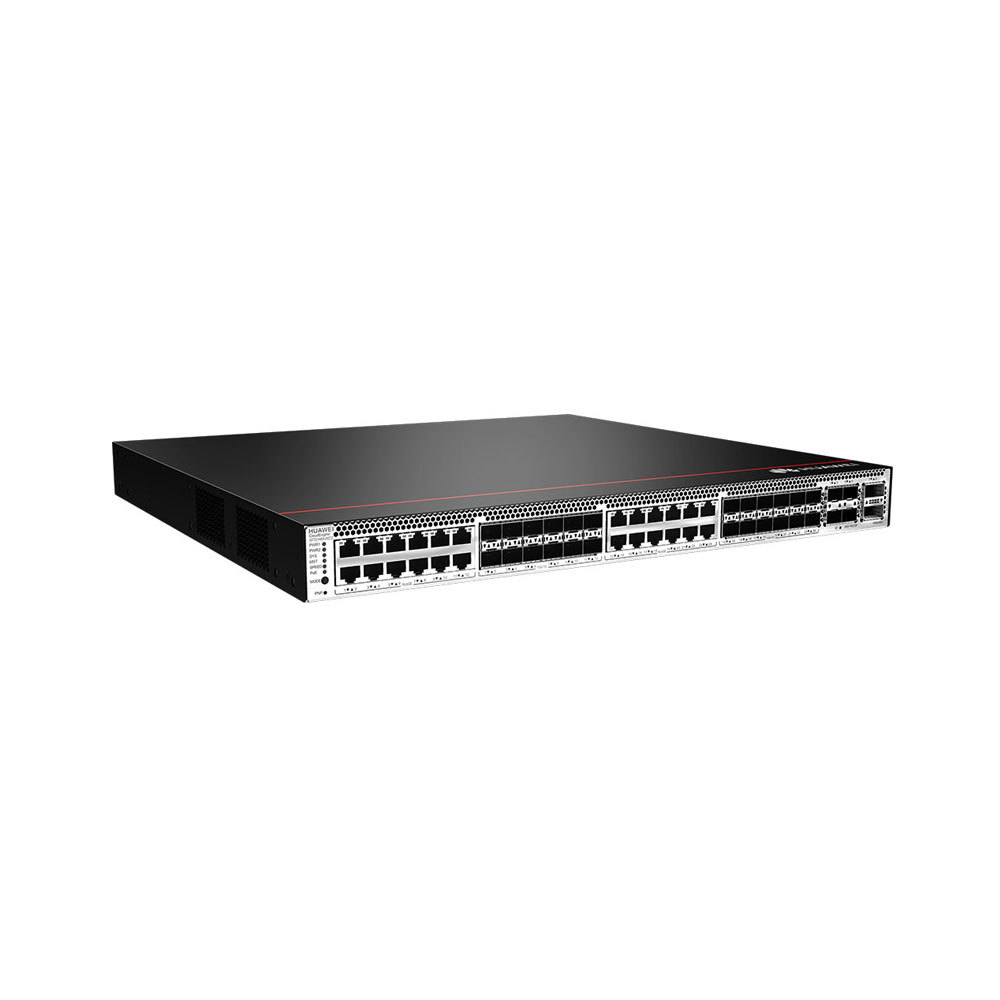

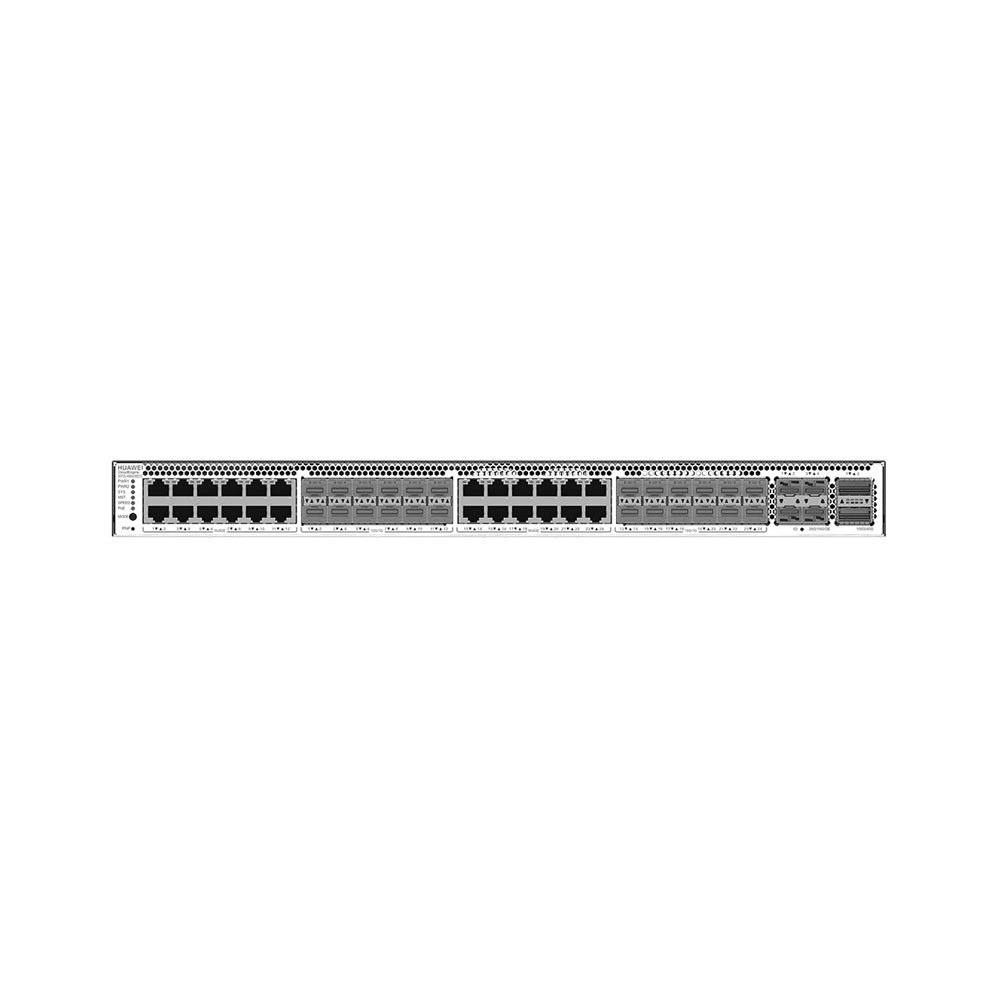

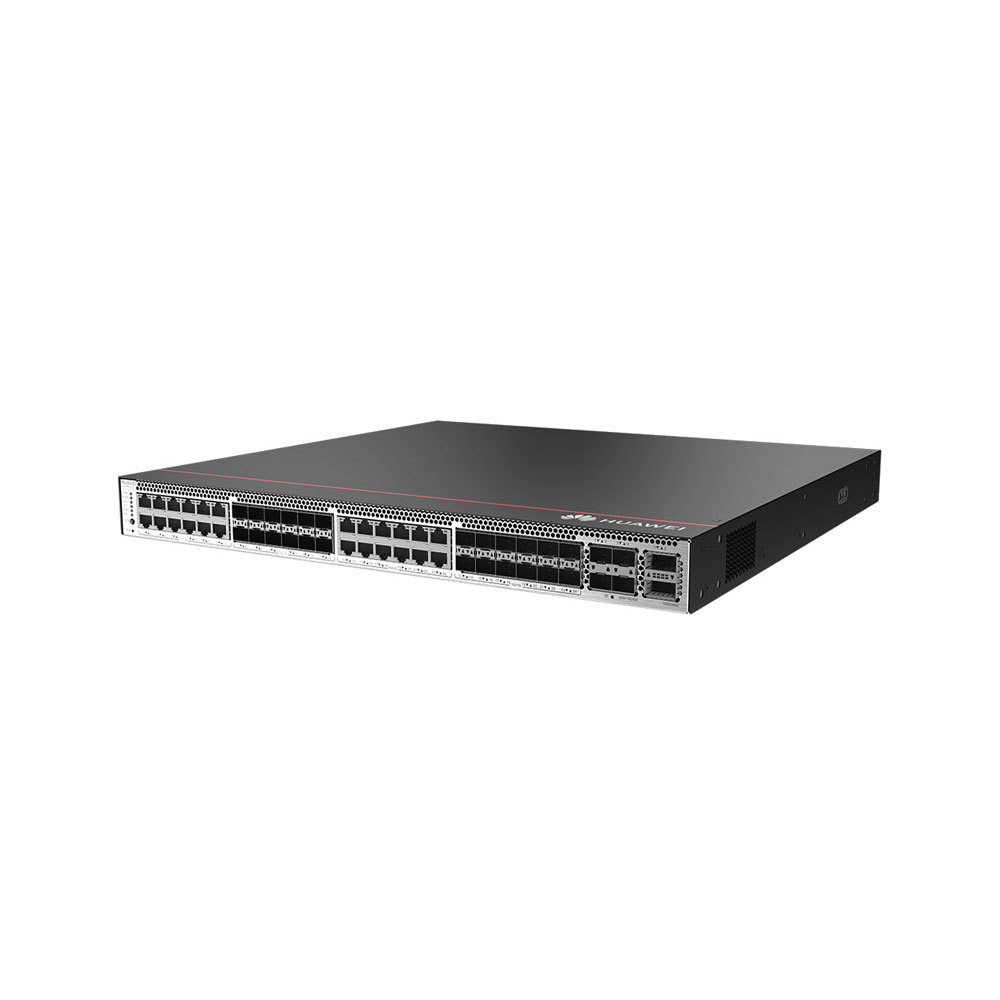

CloudEngine S5732-H series Switches are brand-new full-10GE(Multi-GE capable) switches developed by Huawei for the Wi-Fi 6 era. The CloudEngine S5732-Hbuilds on Huawei's unified Versatile Routing Platform (VRP) and boasts various IDN features. For example, the integrated wireless AC capabilities can manage up to 1,024 wireless APs; the free mobility feature ensures consistent user experience; the VXLAN functionality implements network virtualization; and built-in security probes support abnormal traffic detection, threat analysis even in encrypted traffic, and network-wide threat deception. With these merits, the CloudEngine S5732-H can function as core switches for small-sized campus networks and branches of medium-and large- sized campus networks, and also work as access switches for Metropolitan Area Network. CloudEngine S5732-H can provide a maximum of 48 10GE Multi-GE ports, which is a good choice for WLAN APs to connect to a switch in the high-quality campus networks.

What is a Switch?
A switch is a device that enables communication between two or more IT devices, such as computers, servers, printers, and more. It helps devices within a network share resources, including printers, file storage, internet access, and application processing. In simple terms, a switch acts as a "traffic hub" in a network.

Key Characteristics:

• Intelligent Forwarding: Unlike a basic hub, a switch intelligently directs data packets only to the intended recipient device based on MAC addresses.

• Efficient Communication: This targeted data transmission reduces unnecessary traffic, enhances network performance, and improves security within the local network.

• Scalability: Switches come in various sizes, from small desktop models for home/office use to large modular switches for enterprise data centers.

Common Applications:

• Connecting devices within a Local Area Network (LAN)

• Building enterprise networks, data centers, or home networks

• Supporting resource sharing and collaborative workflows

In summary, a switch is a fundamental networking device that efficiently manages and directs data flow, ensuring smooth and reliable communication between connected devices.

Core Functions of a Switch
The primary functions of a switch include:

1. VLAN Segmentation – Enhances network security by isolating traffic into separate virtual networks.

2. Targeted Forwarding – Improves network performance by accurately identifying and forwarding data only to the intended destination device.

3. Traffic Control – Optimizes network reliability and stability through mechanisms like Quality of Service (QoS) and loop prevention (e.g., Spanning Tree Protocol).

4. Link Aggregation – Increases bandwidth and provides redundancy by combining multiple physical links into a single logical channel.

   Working Principle of a Switch
   A switch operates at either the Data Link Layer (Layer 2) or the Network Layer (Layer 3) of the OSI model:

   • Layer 2 Switch: Forwards data based on MAC addresses.

   • Layer 3 Switch: Forwards data based on IP addresses.

   A switch continuously learns the MAC addresses of connected devices and records them in its MAC address table.
   The core processes include:

   1. Learning: Records the source MAC address and its corresponding port.

   2. Forwarding: Precisely forwards frames to the destination port based on the target MAC address.

   3. Flooding: If the target MAC address is not found in the table, the switch broadcasts the frame to all ports (except the source port).

   4. Update: Periodically refreshes the MAC address table to ensure accuracy and remove stale entries.
